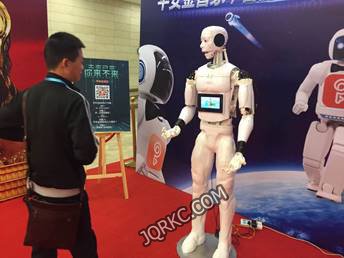

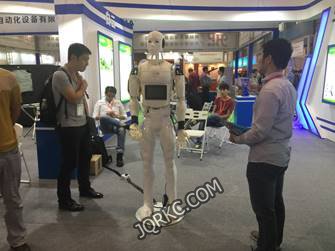

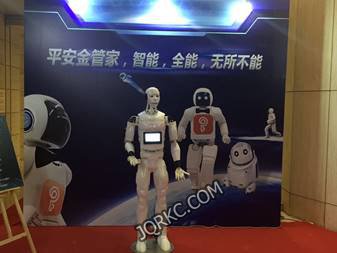

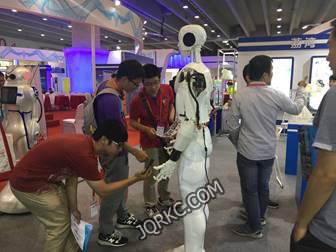

| Application scene | hotel、bank、administrative centre、restaurant、science and technology museum、museum、library、hospital、school、sales center、shopping Mall、cinema、car 4S stores、banquet hall、wedding celebration、opening ceremony etc. |
| Functions overview | welcome、explanation、guide to visitor、shopping guide、marketing、consultation、Fun chatting、host guest、promote product、education etc. |
| Custom scenario function steps |
1、provide scenario requirements 2、consult if you can develop this feature 3、consulting development cycle 4、consulting development cost 5、Sign bespoke agreement 6、check and accept product function |
| function | Content | |
| 1 | welcome & farewell | Different route direction automatic induction of human body, and broadcast the greeting, farewell speech language, support custom display images, custom in different countries, different areas of language. |
| 2 | performance | It can simulate human performance, and every detail of the upper body joints can be moved, including fingers, and can be performed with music |
| 3 | product explanation | It can play audio explanation, picture, video and other forms of advertising information, or related publicity content, full display of new product features and related services. |
| 4 | business consulting | Customize the voice dialogue, support the construction of industry data model and mass knowledge base (to be customized), answer all kinds of business consulting problems, and continue to optimize learning intelligently. |
| 5 | Science and technology show | The joints on the body are as moving as real people, which is very advanced and amazing to the audience. |
| 6 | teaching demonstration | Body joint structure and control system, software application can be used for teaching |
| 7 | media effect | It can attract media interviews and communication, and the advertising effect is very good. |
| 8 | fun chatting | Through the cloud and voice interaction, can achieve fun chatting; support for everyone, children's voice, cartoon pronunciation. |
| 9 | circular preaching | In the uninterrupted group visit activities, the robot can automatically cycle operation according to the custom work mode and the walking route of the organizers, and complete the safe and efficient propaganda and reception work. |
| 10 | arbitrary control | Through the APP, voice, remote control to achieve a variety of operations, publicity and promotion. |
| 11 | private consultant | During private visits and leadership visits, the robot works as a private consultant, adapt to on-site changes and questions, and completes flexible and interesting interpretation reception work. |
| 12 | face identification | Face recognition can be used to welcome guests or VIP guests. |

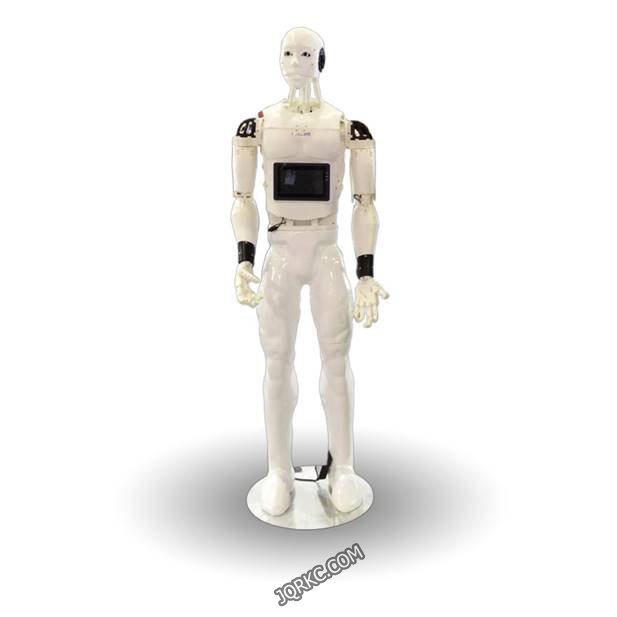

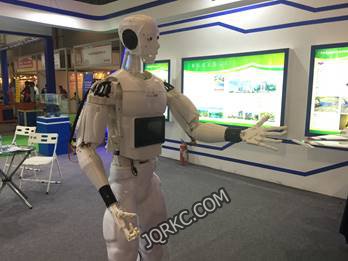

| Model of robot | Shaqiang- 1 | ||
| Base parameters | |||
| Height | 178cm | Weight | 30kg |
| Screen | 10.1 inch，Hd color LCD screen | Screen type | 10 touch screen, capacitance |
| Screen resolution (dpi) | 1920*1080 FULLHD | Camera | Two million pixels |
| Size(mm) | 217*136 mm | Batteries and specifications | Can be equipped with：Polymer lithium battery 24V12AH |
| Move mode | No power universal wheel | Chassis structure | A circular rigid |
| Microphone | 1 mic arrays, reduce noise | Loudspeaker | Dual speaker |
| Internet Connections | WIFI | Support bluetooth | Yes |
| The power supply situation | 220V voltage for straight plug home | Battery | Can be equipped with |
| Rated input voltage (V) | 220VAC | Rated output voltage (V) | 24VDC |
| The distance of the human sensor to the guest | 6～8m | Ultrasonic distance | 1～2m |
| Rated output current (A) | 2A | Rated power (W) | 48W |
| Control parameter | |||
| Remote control walking | You can control the action by remote control handle | Voice control | It can voice command control action performance, voice control singing |
| Conversational mode | Custom Settings dialog content + cloud language library dialog | Canning material | ABS engineering plastics |
| Dialog system activation mode | Voice activation | Dialog system sleep time | 5min |

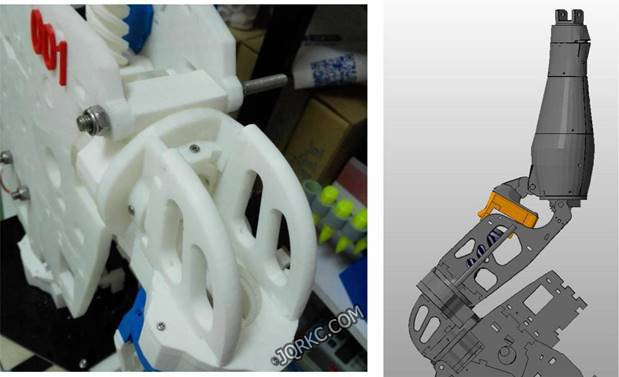

| Joint parameter | |||

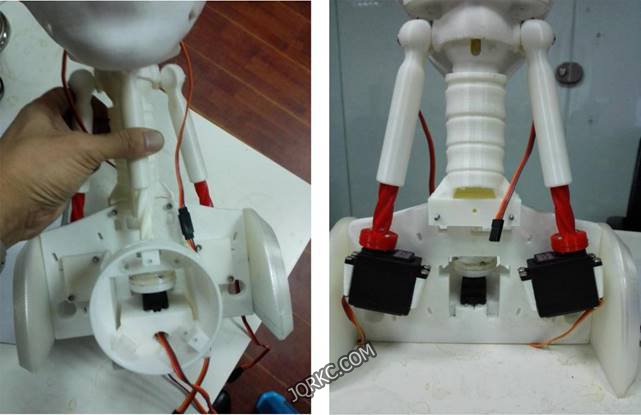

| Joint power | Digital servo | Total freedom | 27 |
| Head freedom | 4 | Arm freedom | 10 |
| Finger freedom | 10 | Waist freedom | 2 |
| Mouth | 1 | The head transmission | The lever principle |

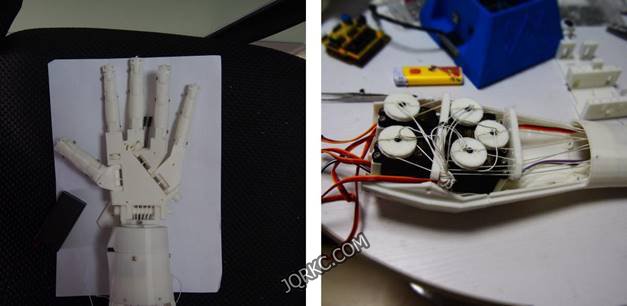

| Finger movement | Wire transmission | Phonetic explanation | MP3 Modular voice broadcast |
| Action performed | |||
| The action group | 4 | Arm movements | 3 |
| Head movements | 1 | The waist movements | 1 |
| Raise my hand movements | 2 | Finger performance | You can move one finger |
| Multimedia parameter | |||
| Picture | format：jpg resolution：1920*1080 | Video frequency | format：mp3 frequency range: 32kbps-320kps |
| Video | format：mp4 resolution：1920*1080 | Text | format：xml |
| Attachments | |||
| The standard of service | Instruction, warranty card, prompt label, daily maintenance | The standard packing | Pearl cotton, wooden case |
| The standard accessories | 1 Remote control, 1 power cord | The standard tool | 1 set of inner hexagon tool wrench and 1 set of outer hexagon tool wrench |
| Model number | Freight | Standard configuration | Optional |
| Shaqiang-1 | Do not include, calculate freight according to specific area. | 1 remote control, 1 power cord, 1 set of inner hexagon tool wrench, 1 set of outer hexagon tool wrench, 1 wooden frame. |
Flight case |
AoBo Information Technology Co., Ltd.
